Applications of the high speed film blowing machine:
Packaging Industry: This high film blowing machine produces films for packaging materials such as shopping bags, garbage bags, and food packaging.
Agriculture: The HDPE blown film machine is capable of manufacturing films for agricultural uses, including greenhouse covers, mulch films, and silage bags.
Textile Industry: This hdpe extruder machine is utilized in the textile sector to create films for mattress covers, sofa covers, and protective clothing.
Construction Industry: The HDPE film blowing machine can produce films for construction applications, including vapor barriers and concrete curing.
Features of the high speed film blowing machine:
Low Pressure Process: The high speed film blowing machine employs a low pressure process, resulting in lower energy consumption and production costs.
High Quality Output: The HDPE blown film machine delivers films with consistent thickness and excellent tensile strength.
Easy Operation: This HDPE extruder machine is user-friendly and requires less technical expertise compared to high pressure machines.
Versatility: The HDPE film blowing machine can produce various films suitable for multiple industries.
Cost Effective: Compared to high pressure machines, the low pressure film extrusion blower is more affordable, making it a popular choice for small and medium-sized enterprises.
Energy Efficient: The low pressure process consumes of the film extrusion blower less energy than high pressure machines, thus lowering production costs and carbon emissions.
Versatile Production: This high speed film blowing machine can manufacture a variety of films, including LDPE, LLDPE, and HDPE, ideal for producing shopping bags, garbage bags, and food packaging.
The HDPE blown film machine is an essential tool in modern manufacturing, particularly for producing high-density polyethylene films. Utilizing an HDPE extruder machine, the process begins with melting and extruding the HDPE material, which is then formed into films using a film extrusion blower. This advanced setup allows for the creation of high quality films that are uniform in thickness and possess excellent tensile strength.
The high speed film blowing machine ensures rapid production capabilities, making it suitable for large-scale operations. These machines are increasingly favored for their energy efficiency, allowing manufacturers to reduce costs while meeting the demand for sustainable production practices.
In summary, the HDPE film blowing machine is crucial for producing films that meet the diverse needs of various industries, reinforcing its role as a vital asset in today's manufacturing landscape.
Parameters of the HDPE film blowing machine
| Model | SJM-Z45×30-850 | SJM-Z50×30-1100 |
Screw diameter(mm) | Φ45 | Φ50 |
| Screw ratio L/D | 30:1 | 30:1 |
| Screw speed (r/min) | 15-120 | 15-120 |
| Main motor power (kw) | 15-18.5 | 18.5-22 |
| Max Extrusion output (kg/h) | 50 | 80 |
| Film thickness(mm) | 0.01-0.10 | 0.01-0.10 |
| Max fold width of the film (mm) | 750 | 1000 |
| Range of die (mm) | Φ160, Φ200 | Φ200, Φ250 |
| Electric total capacity (kw) | 36 | 46 |
| Overall dimensions (m) | 7.5×3.5×5 | 8.5×3.8×6 |
| Machine weight (kg) | 3000 | 5000 |

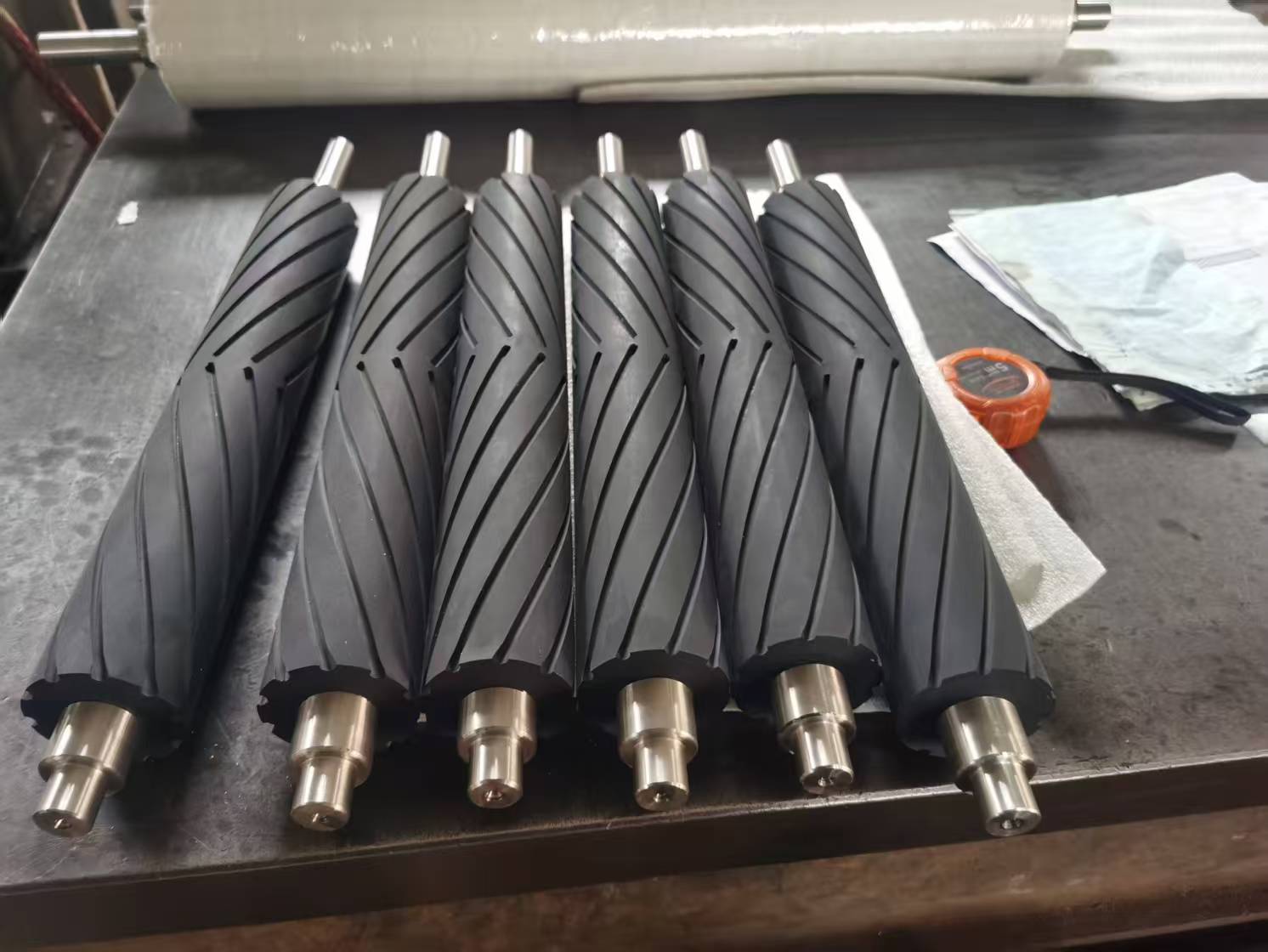

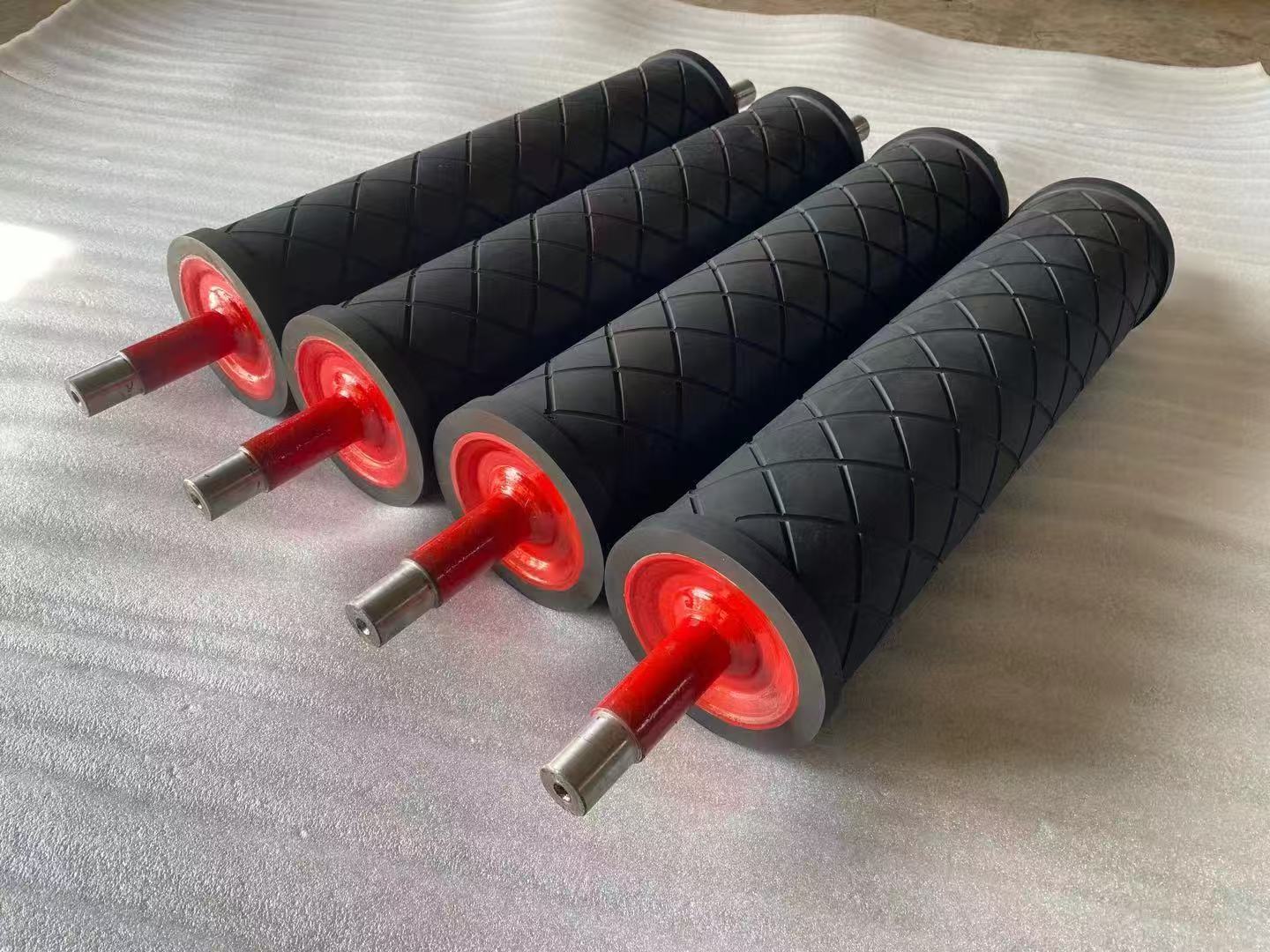

Detail Images about this hdpe blown film machine
About Us:
Our company specializes in the design and manufacturing of advanced HDPE extruder machines, hdpe blown film machine and film extrusion blowers. With a commitment to quality and innovation, our HDPE extruder machines, hdpe blown film machine and film extrusion blowers, HDPE extruder machines and hdpe blown film machine produce high quality films that meet the rigorous demands of various industries. Our film extrusion blowers, HDPE extruder machines and hdpe blown film machine ensure consistent film thickness and excellent tensile strength, making them indispensable for applications ranging from packaging to agriculture. By integrating state of the art technology, our HDPE extruder machines and film extrusion blowers deliver unmatched performance and efficiency, helping our clients achieve optimal production results. Whether you need robust HDPE extruder machines or reliable film extrusion blowers, our solutions are designed to exceed your expectations and support your business goals.
Our HDPE extruder machines, hdpe blown film machine, film extrusion blowers, hdpe film blowing machine, and high speed film blowing machine have been exported to more than 100 countries around the world, producing excellent results for our customers, believe our hdpe film blowing machine will also bring you great benefits.
Packging and delivry for blown film extruder
Our technical engineers service support before sale, in sale and after sale

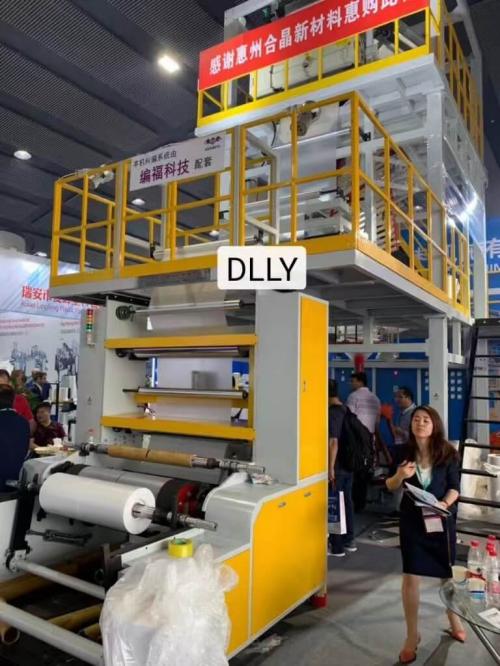

We are at Chinaplas exhibition for showing our blown film extruder
